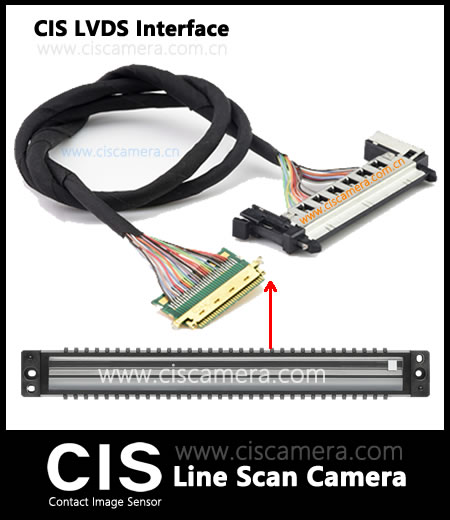

CIS LVDS Interface
CIS Line Scan Camera

Specification & Model
CIS LVDS Interface

CIS Line Scan Camera

CIS Line Scan Camera LVDS

CIS Line Scan Camera LVDS Interface
Contact Image Sensors (CIS) consist of a linear array of CMOS image sensors (monochrome or colour) of varying widths to cover the field of view. CIS modules include an integrated LED light source (UV, visible, NIR or a combination), which reflects off the scanned object surface and is focused onto the CMOS image sensor element through a self focusing linear lens.
Compared to conventional line scan camera systems, CIS modules offer improved image quality (1:1) with no distortion and a short working distance. The compact space efficient units with internal light source provide a single scanning width from 18 ~ 6000mm* making them ideal for integration into machine vision systems and applications including; web inspection, surface inspection, printing inspection, film inspection, PCB inspection, textile inspection and glass panel inspection.
Please see below for information on the LVDS CIS Line Scan Camera Options:

Features & Benefits:

1、Compact – easily integrated into production lines/machines, reducing the volume of inspection systems
2、1:1 imaging with telecentric view to detect printed graphic quality and surface damage effectively
3、Single scanning width from 18 ~ 6000mm, no alignment issue of multiple cameras and lenses
4、Flexible external light angle allows inspection of even more defects, such as small holes
5、Single CIS supports reflected light and backlight
6、Optional filter to eliminate parasitic light
7、Distortion-free imaging : 1:1 image
8、Wide angle seamless imaging : min 108mm-max 310mm
9、Fast scanning speed : max 40kHz@600dpi; max22kHz@1200dpi
10、High resolution : max 1200dpi
11、Working distance : min 0.9mm-max 29.3mm (optional)
12、Interfaces : LVDS

Applications:

1、Battery foil inspection: coating, slitting, notching, lamination
2、Printing: label, narrow web, metal sheet, carton
3、Plastic film packaging
4、Glass and ceramic surface inspection
5、Panel: surface, dimensions, hole alignment
6、Silicon wafer: pattern, serial number, crack, dust
7、Textiles: leather quality, cloth colour/quality

Specification & Models:

Technical Parameters <CIS-3U Series>							Customisation
Scanning width (mm)	108/216/310 CIS-LVDS(108~310)M/C						18mm～940mm
Resolution (dpi)	–		200	300	600	1200	Resolution 200dpi～1200dpi
Precision (mm)	–		0.125	0.084	0.042	0.021
Scanning speed (8bit) LVDS Interfaces	Mono	m/min	630	332	102	28
	Mono	KHz	82	65	40	22
	Colour	m/min	210	110	34	9
	Colour	KHz	27	21	13	7
Inner light source	Red, Green, Blue (or without light source)						External light source
Working distance (mm)	8/14.8/17.2/29.3						3.5～29.3mm
Interfaces	LVDS						LVDS
